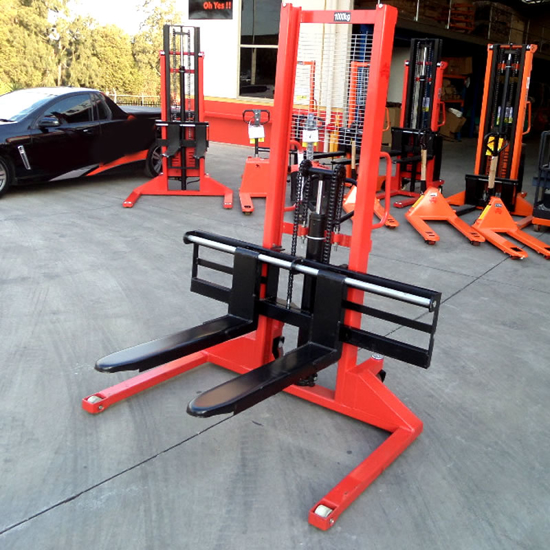

Picture of Straddle Hand Stacker 1500kgs 1600mm Lift
Picture of Straddle Hand Stacker 1500kgs 1600mm Lift
Picture of Straddle Hand Stacker 1500kgs 1600mm Lift
Picture of Straddle Hand Stacker 1500kgs 1600mm Lift
Picture of Straddle Hand Stacker 1500kgs 1600mm Lift

Straddle Hand Stacker 1500kgs 1600mm Lift

This straddle hand stacker is Suitable for lifting Standard and narrow pallets, skids, safes, equipment, boxes, machinery, etc.
Part No: EW-SHS15
*
$2,270.00 excl GST

Straddle Hand Stacker 1500kgs 1600mm Lift

This straddle hand stacker is Suitable for lifting Standard and narrow pallets, skids, safes, equipment, boxes, machinery, etc.
Description:
  • Manual push, pull, lift and drop
  • Extra heavy duty steel frame, Chain and Ram
  • Suitable for all heavy and light loads
  • Suitable for lifting Standard and narrow pallets, skids, safes, equipment, boxes, machinery, etc
  • Economic and mobile work aid – can be used as a pallet jack as well
  • Hand or foot pedal pump up
  • Foot operated brake system for extra safety
Specification:
  • Capacity: 1500kg, Lift Height: 1600mm
  • Single fork length 1150mm, width 150mm, thickness 65mm
  • Min-Max Fork Height: 80mm-1600mm
  • Adjustable forks width: 310mm-1460mm (Outer forks tips)
  • Clearance between forks: 0 – 1100mm
  • Clearance between legs: 1220mm, Overall legs width: 1400mm
  • Wheels: front – 70x70mm , rear – 180x50mm
  • Overall dimensions 165(L) x 140(W) x 208(H) cm – weight 266kg
  • Shipping dimensions – Pallet – 170 x 140 x 222 cm – weight 312kg
