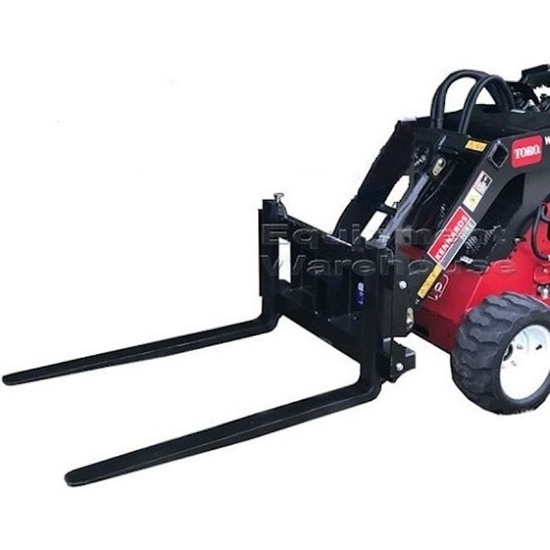

Mini Skid Steer Fork Carriage (With 1200kg Forks) - Sydney

The EW-MC-1200 Mini Hitch Carriage is a Class 2 fork carriage fitted with a mini hitch coupling usually ex stock
Part No: EW-MC-1200F-S
*
$920.00 excl GST

Mini Skid Steer Fork Carriage (With 1200kg Forks)



This Mini Hitch Carriage is a Class 2 fork carriage fitted with a mini hitch coupling.

Features:
  • Designed for fast connection to mini skid steer loaders
  • Allows easy fitment of optional accessories
  • High visibility design for safe operation
  • Fully certified with rating plate attached
  • Designed in accordance with AS2359.1 and ISO 23206
Specifications:
  • Working Load Limit (WLL): 1200kg @ 500mm LC
  • Load Centre: 500mm
  • Dimensions: 884 (w) x 406mm (h)
  • Carriage Width 884mm
  • Unit Weight: 110kg
  • 340mm between the pins
  • 30mm x 200mm pin hole size
  • Supplied with  1 x pair 1000mm x 80mm x 40mm 1200kg Forks



In Stock Sydney
